Prefabricated Vertical Drain (PVD) Design in Chatham-Kent

The National Building Code of Canada (NBCC 2020) sets stringent limits on post-construction settlement for infrastructure. In Chatham-Kent, where thick deposits of soft Champlain Sea clay and glaciolacustrine silts underlie much of the municipality, achieving those limits without ground improvement is rarely feasible. Prefabricated vertical drain (PVD) design accelerates primary consolidation by shortening the drainage path, turning years of waiting into months. Before laying out the drain pattern, we always run a laboratory permeability test on undisturbed samples to confirm the horizontal coefficient of consolidation (ch). That parameter dictates the spacing and depth of the drains for each site.

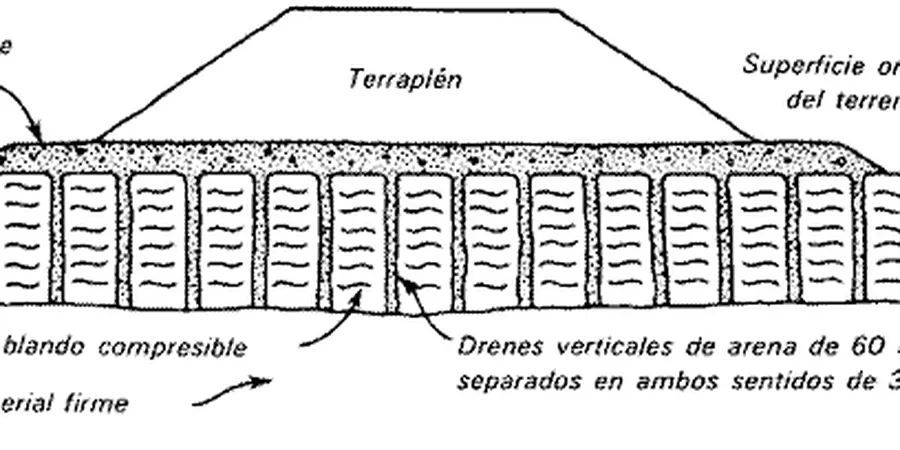

Illustrative image of Drenes verticales in Chatham-Kent

For Chatham-Kent soft clays, a well-designed PVD grid can cut consolidation time from three years to four months.

Our service areas

Slopes & Walls

Soil erosion analysis ›Slope stability analysis ›Factor of safety (FS) calculation ›Active/passive anchor design ›Retaining wall design ›

VIEW ALL SLOPES & WALLS ›

Laboratory

Grain size analysis (sieve + hydrometer) ›Soil mechanics study ›Laboratory permeability test (falling/constant head) ›

VIEW ALL LABORATORY ›

Ground improvement

Geotechnical drainage design ›Prefabricated vertical drain (PVD) design ›Geotechnical instrumentation (design and installation) ›

VIEW ALL GROUND IMPROVEMENT ›

Methodology and scope

A common mistake we see in Chatham-Kent is assuming one PVD spacing works for the whole lot. The clay here can vary in compressibility over 50 meters laterally, especially near the Thames River floodplain. Our design process starts with a site-specific consolidation test program following CSA + CSA + CSA + CSA + ASTM D2435 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2). We then model the required degree of consolidation at the end of surcharge — typically 85 to 95 percent — and adjust the triangular grid spacing accordingly. The key parameters we evaluate include:

Horizontal coefficient of consolidation (ch) from Rowe cell or piezocone dissipation tests
Smear zone effects caused by mandrel installation
Drain discharge capacity under the final vertical stress
Time-settlement curves for staged construction phasing

Technical reference — Chatham-Kent

Local considerations

What many don't realize until mid-construction is that PVD installation in Chatham-Kent often encounters thin sand seams interbedded with clay. These seams act as natural drains, but if the mandrel tears the geotextile jacket during installation, the seam can clog the filter. We've seen projects where the actual settlement rate was half the predicted value because of that. Our solution is to run a trial section first — install ten drains, monitor pore pressure dissipation for two weeks, and back-calculate the field ch before approving the full production pattern.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.vip

Applicable standards

NBCC 2020 (National Building Code of Canada), ASTM D6766-12 (Tensile properties of PVD geotextiles), CSA A23.3-19 (Concrete design, referenced for surcharge loading)

Technical parameters

Parameter	Typical value
Typical drain spacing (triangular)	1.0 - 2.5 m
Maximum installed depth	30 m
Horizontal coefficient of consolidation (ch)	2 - 8 m²/year (Chatham-Kent clay)
Required degree of consolidation (U)	85 - 95%
Discharge capacity at design stress	≥ 100 m³/year per drain
Surcharge height	2 - 5 m depending on fill type

Frequently asked questions

How does PVD design differ for Chatham-Kent clay compared to other Canadian clays?

Chatham-Kent clay has a higher sensitivity and lower horizontal permeability than, say, the lacustrine clays of Winnipeg. This means drain spacing needs to be tighter — typically 1.2 to 1.8 m — and the discharge capacity requirement is higher to handle the slower pore pressure dissipation. We also account for the smear zone more conservatively.

What is the typical cost range for a PVD design study in Chatham-Kent?

For a standard commercial or industrial site, the design study including laboratory testing, numerical modeling, and a drain layout plan ranges between CA$1,160 and CA$3,330. The final cost depends on the number of borings, consolidation tests required, and the complexity of the surcharge sequence.

Can PVDs be combined with other ground improvement methods?

Yes. In Chatham-Kent we frequently combine PVDs with vacuum preloading or staged fill surcharge to accelerate consolidation further. When the clay is very thick (over 20 m), we sometimes recommend combining PVDs with lightweight fill to reduce the total surcharge load.

How long does the consolidation monitoring phase typically last?

For a typical Chatham-Kent site with 8 to 12 m of soft clay, the monitoring phase lasts 3 to 6 months. We track pore pressure dissipation and surface settlement using automated dataloggers, and we stop the surcharge once 90% consolidation is confirmed by the settlement curve trend.
