Landslide Assessment in Chatham-Kent: Geotechnical Stability Analysis

Rigorous testing. Clear reporting.

LEARN MORE

Many contractors in Chatham-Kent assume that if a slope looks stable after a dry summer, it will hold through spring thaw. That assumption has led to expensive failures on the bluffs along the Thames River. The clay-rich till and glaciolacustrine deposits found across the municipality respond differently to saturation than granular soils. A proper landslide assessment evaluates pore pressure buildup, shear strength parameters, and failure surface geometry before any foundation work begins near a slope. Without this analysis, the risk of a progressive failure increases significantly. Combining the assessment with a calicata exploratoria for visual soil logging and an ensayo SPT for strength correlation provides the baseline data needed for a reliable stability model.

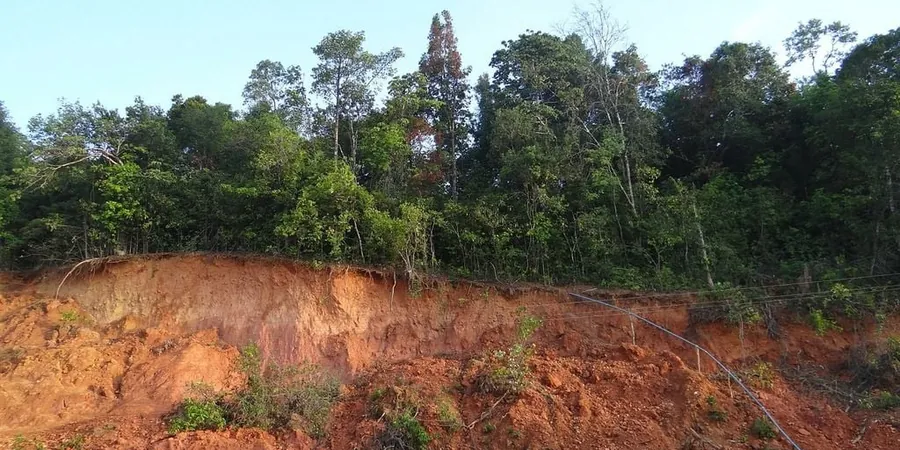

Illustrative image of Deslizamientos in Chatham-Kent
Two adjacent slopes in Chatham-Kent can respond differently to the same storm — shallow failures in silty sand or deep-seated slides in clay till require distinct analytical approaches.

Our service areas

Methodology and scope

Chatham-Kent sits on the Windsor–Sarnia plain, where the Erieau moraine and Lake Erie shoreline create complex stratigraphy with alternating clay tills, silty sands, and scattered peat layers. This variability means that two adjacent slopes can behave entirely differently under the same rainfall event. Our assessment method follows the NBCC 2020 seismic provisions and CSA A23.3-19 for slope stability under static and pseudo-static conditions. We compute factors of safety using both Bishop simplified and Morgenstern-Price methods, and we integrate estabilidad de taludes for back-analysis when a failure has already occurred. The approach also includes sensitivity analysis for groundwater fluctuation, which is critical given that Chatham-Kent receives approximately 950 mm of precipitation annually, with peak intensity from December through April.
Technical reference — Chatham-Kent

Local considerations

A residential subdivision near the Thames River in Chatham-Kent experienced a slope movement of 0.8 m over two weeks in 2022 after a series of heavy rains. The builder had cleared vegetation from the slope face and placed fill at the crest without any slope stability analysis. The failure surface mobilized along a clay till layer with residual shear strength below 8 kPa. The resulting slide damaged three house foundations and required emergency sheet piling. The cost of remediation was four times what a proper landslide assessment would have cost before construction. This scenario repeats every few years across the municipality, especially in areas with steep banks near the watercourses.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.vip

Applicable standards

NBCC 2020 – Seismic and static slope stability clauses, CSA A23.3-19 – Concrete design for retaining structures, ASTM D3080/D3080M – Direct shear test for shear strength, ASTM D4767 – Consolidated undrained triaxial test

Technical parameters

ParameterTypical value
Factor de seguridad estático≥ 1.5 (NBCC 2020)
Factor de seguridad pseudo-estático≥ 1.1 (zonas sísmicas)
Ángulo de fricción interna (φ')28°–35° (till arenoso)
Cohesión efectiva (c')5–35 kPa (arcilla till)
Peso unitario del suelo (γ)18–21 kN/m³
Nivel freático crítico1.5–4.5 m bajo la superficie

Frequently asked questions

What is the difference between a landslide assessment and a general slope stability analysis?

A landslide assessment focuses specifically on identifying existing or potential failure surfaces, trigger mechanisms (rainfall, seismic, erosion), and residual shear strength along the slip plane. A general slope stability analysis evaluates a slope in its current condition. The assessment becomes necessary when there is evidence of past movement or high-risk geological features such as the clay tills and thick overburden found in Chatham-Kent.

How much does a professional landslide assessment cost in Chatham-Kent?

The cost typically ranges between CA$1.280 and CA$5.750 depending on site access, slope height, number of boreholes, and laboratory testing requirements. A basic desktop study for a small residential lot with existing geotechnical data is at the lower end. A full field program with monitoring instrumentation for a multi-hectare subdivision is at the higher end.

What triggers landslides most frequently in this region?

The primary triggers are prolonged rainfall events that saturate the clay till layers, followed by rapid drawdown of the Thames River level after flooding. Freeze-thaw cycles during late winter also reduce shear strength at the surface, while seismic events — even low-magnitude ones from the Western Quebec Seismic Zone — can trigger movement in marginally stable slopes along the Lake Erie shoreline.

Do I need a landslide assessment if my lot is far from the river?

Yes, because Chatham-Kent has many ravine systems, drainage channels, and former glacial meltwater channels that create hidden slopes. Even a 3 m high slope in silty sand can fail catastrophically if the toe is undercut by drainage flow or if fill is placed at the crest. The NBCC 2020 requires stability verification for any slope steeper than 3H:1V within the zone of influence of a proposed structure.
