Geotechnical Design of Deep Excavations in Chatham-Kent

A common mistake contractors make in Chatham-Kent is underestimating the lateral earth pressures on deep excavation shoring systems. The region's glacial till and fine-grained lacustrine deposits can behave very differently under load than typical granular soils. Without a proper geotechnical design of deep excavations, temporary shoring walls may deflect excessively or even collapse. We see this especially in basement excavations for new commercial builds near the Thames River corridor. Before setting a single soldier pile, a thorough investigation of soil stratigraphy and groundwater conditions is essential. Combining a presurometer test for in-situ modulus with groundwater monitoring gives the real data needed to model excavation behavior accurately.

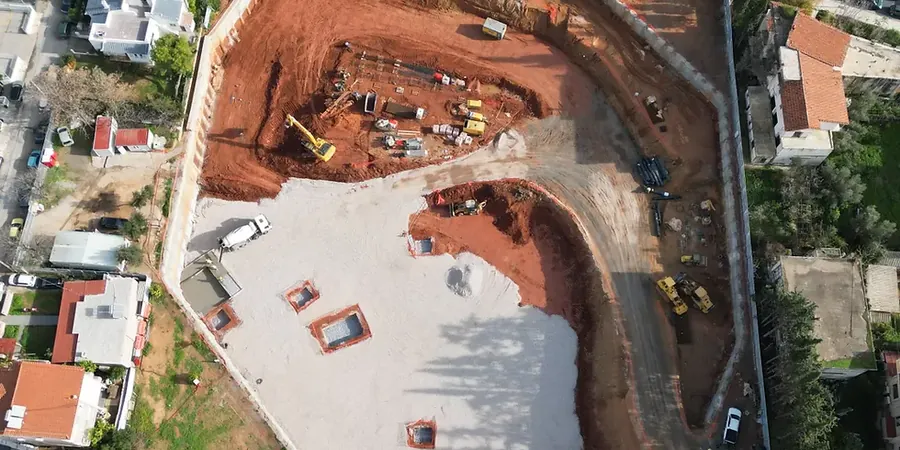

Illustrative image of Excavaciones profundas in Chatham-Kent

In Chatham-Kent's glacial till, lateral earth pressures on shoring can exceed Rankine predictions by 30% if strain-softening is ignored.

Our service areas

Ground improvement

Unsaturated soil analysis ›Stone column design ›Dynamic compaction design ›Deep Soil Mixing (DSM) design ›Geotechnical drainage design ›

VIEW ALL GROUND IMPROVEMENT ›

Slopes & Walls

Soil erosion analysis ›Slope stability analysis ›Slope failure analysis ›Debris flow analysis ›Factor of safety (FS) calculation ›

VIEW ALL SLOPES & WALLS ›

Foundations

Differential settlement analysis ›Settlement analysis ›Bearing capacity analysis ›Foundations on fill (analysis) ›Shallow foundation design ›

VIEW ALL FOUNDATIONS ›

Methodology and scope

A recent 5-story residential project on Grand Avenue East required a 7-meter-deep excavation into dense clay till. The geotechnical design of deep excavations for that site involved evaluating both temporary and permanent support systems. We modeled the excavation in stages using finite element analysis to capture stress redistribution and wall deflection. Key parameters included undrained shear strength from UU triaxial tests and at-rest earth pressure coefficients from presurometer data. The design accounted for a 1.2-meter groundwater table and potential for perched water in sand lenses. For projects in Chatham-Kent, we always run sensitivity analyses on wall stiffness and strut spacing to optimize both safety and cost.

Technical reference — Chatham-Kent

Local considerations

Chatham-Kent developed rapidly along the Thames River floodplain, where thick sequences of soft clay and silt were deposited under lacustrine conditions. These compressible layers pose a high risk of basal heave and bottom instability during deep excavations. The geotechnical design of deep excavations in these areas must include heave factor-of-safety checks using Terzaghi's method and, where needed, ground improvement by deep soil mixing to stabilize the excavation base. Ignoring the strain-softening behavior of the local clay can lead to progressive failure of the shoring system, especially during prolonged open-cut periods.
